| Brand Name: | EcooGraphix |
| MOQ: | 500 sqm |
| Payment Terms: | T/T |
| Supply Ability: | 50000 sqm/Year |
Specification
| Specifications | |

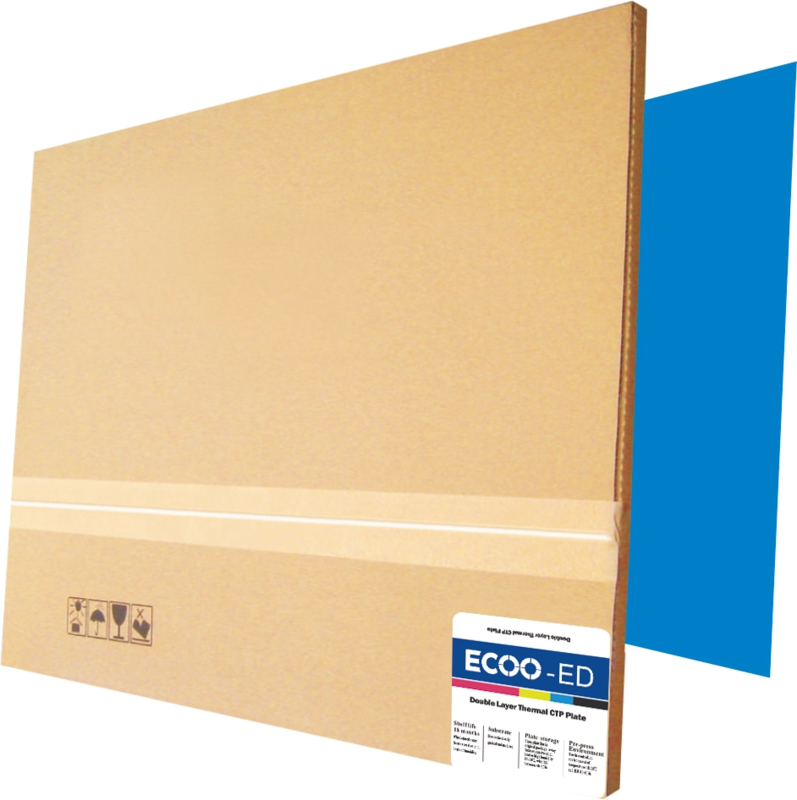

| Plate Model | ECOO-ED |
| Plate Type | Positive Thermal CTP Plate(Double Layer) |
| Application | High grade commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Coating | Two-layer system, IR sensitive, positive acting |
| Gauge | 0.15,0.20, 0.25,0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Plate intermix | Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc. |
| Length of Run | Ordinary Ink: 100,000 to 200,000 impressions UV Ink : 50,000 to 100,000 impressions |
| Exposing | |
| CTP Plate Making Machine Plate setters | Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter Screen : PT-R,Creo : Scitex EcooGraphix Thermal CTP Tseries |
| Exposure energy | 110 - 130 mJ/cm² |
| Spectral Sensitivity | 800-850 nm - Peaks 830nm |
| Resolution | 1-99% at 200 LPI |
| FM capability | 20 micron stochastic |
| Image color | Blue Green to Pale Green |
