| Brand Name: | EcooGraphix |
| Payment Terms: | T/T |
Specification

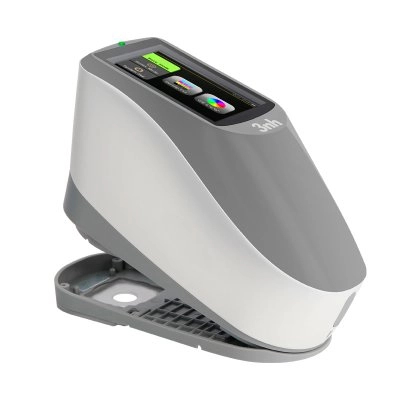

| Model | YD5010-Plus |
| Light Source | Combined LED source, UV light |
| Spectral mode | Concave-Grating |
| Sensor | 256-pixel dual-array CMOS image sensor |
| Wavelength range | 400~700nm |
| Wavelength pitch | 10nm |
| Half bandwidth | 10nm |
| Observer Angle | 2°/10° |
| Measuring time | Approx.1.5s |
| Measurement method | single measurement, average measurement (2-99 times) |
| Size: L*W*H | 184X77X105mm |
| Weight | Approx.600g |
| Battery life | lithium battery, 5000 times of using after charging for 8 hours |
| Lighting source life | 5 years, more than 3 million measurements |
| Display screen | TFT true color 3.5 inch |
| Touch Screen Interface | USB |
| Storage | 10,000 |
