| Brand Name: | EcooGraphix |
| Payment Terms: | T/T |
Specification

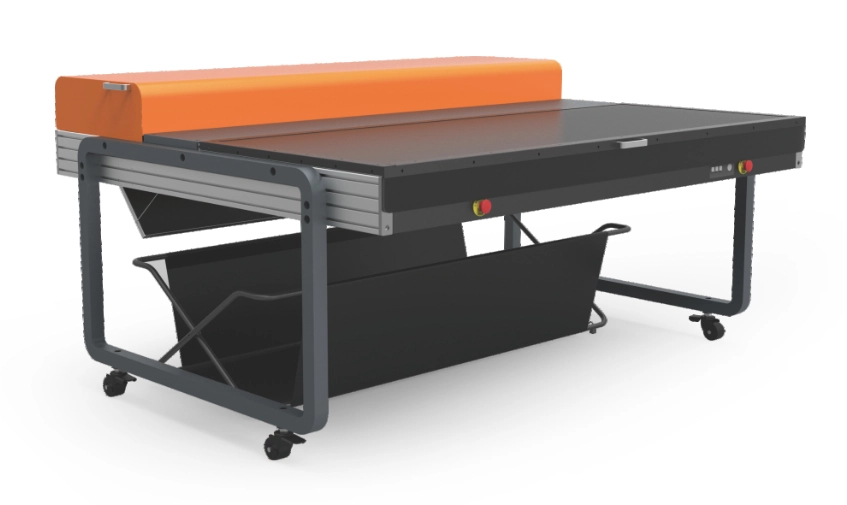

| Model | SCU1200 |
| Cassette Type | Single cassette, Loading platform |
| Plate feeding way | Auto-feed (remove the interleaf paper at the same time) |
| Plate size | Max.1,470x1180mm, Min.300x400mm |
| Plate Thickness | 0.15mm-0.40mm |
| Interface | RS485 |
| Plate Loading Quantity | 100pcs |
| Net Weight | 330KG |
| Device Size | 2380x2177x1327mm (WxDxH) |
| Power Supply | Single phase: 200V-240V; Max power (peak value):1100W |
| Environment |
Recommended temperature:21-25℃ Allowable temperature:15-30℃ Humidity: 40%-70% |
